| Product name：DLP TIR Prism |
 |
| Technical specification |
|
Material
|
H-K9, H-ZK3，H-ZLaF53A, H-ZBaF52 etc.
|
|
Size range
|
10～60mm
|
|
Size tolerance
|
±0.1mm
|
|
Surface
quality
|
40-20（MIL-PRF-13830B）
|
|
Surface figure
|
λ / 2 (632.8nm)
|
|
Angle
|
≧3’
|
|
Air layer thickness
|
above 5μm
|
|
Coating
|
AR
Coating（Incident angle 0-60°），

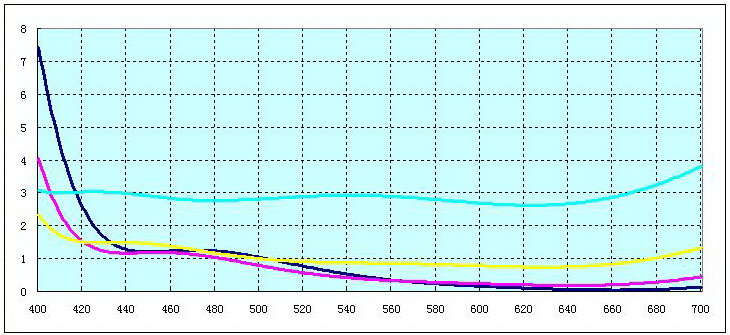

spectral characteristics refer to the drawing on the right side
|
|
|
|
|
