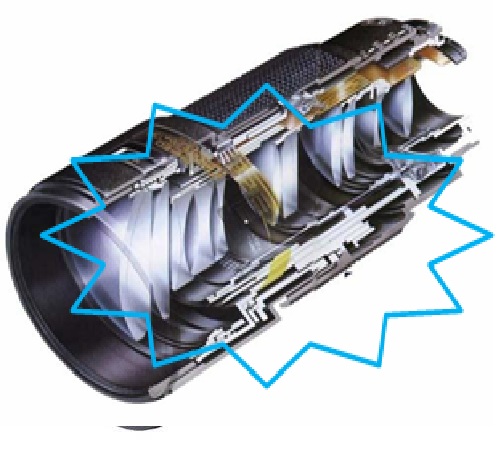

Product name:Lens for Camera Lens |
|
Technical specification |
Material
|
TAFD55,LAF2,PCD4,FCD10 etc.
|
Abrasiveness
of Material
|
50~510
|
External Diameter
|
φ10~φ100
|
Size
tolerance
|
above 0.01mm
|
Eccentricity
|
>15″
|
Surface figure
|
λ
/ 5(632.8nm)
|
Surface quality
|
20-10(MIL-PRF-13830B)
|
Coating
|

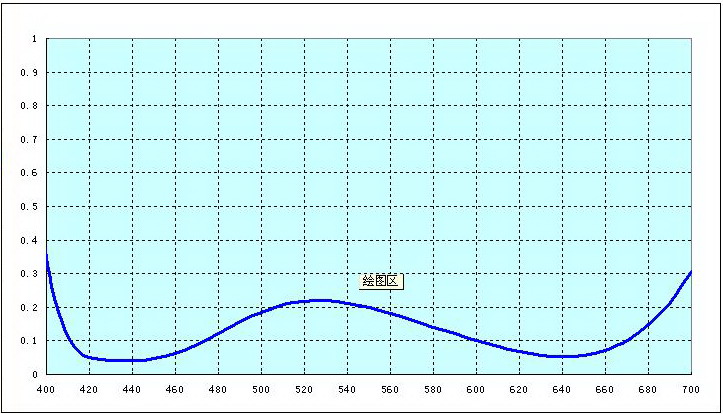

Spectral
characteristics refer to the drawing
on the right side
|
|
|
|
|
